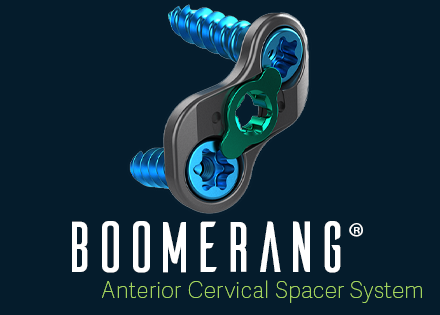

ChoiceSpine's Boomerang® is a versatile anterior cervical plate system designed to be simple and efficient for ACDF procedures. This 510 (k) cleared device has a low-profile designed to be minimally invasive and yields less overhang than traditional plates, and can be inserted simultaneously with cervical interbody implants such as TigerShark™ C and Stealth®, thus eliminating surgical steps and potentially reducing operating room time.

Plate Sizes Screw Styles Screw Type Screw Diameter Screw Length 10,11,12,13, 14,16,18mm Variable Self Drilling ø4.0mm and ø4.5mm 10mm-16mm (2mm increments)

Boomerang® Features:

• Traditional 510(k) plate clearance for cervical use Boomerang was tested against a traditional plate in compression bending and torsion for strength
• Two-Screw Design
• Integrated single-step screw locking mechanism allows for visual and tactile confirmation of locking
• Stackable to Accommodate Multiple Adjacent Levels

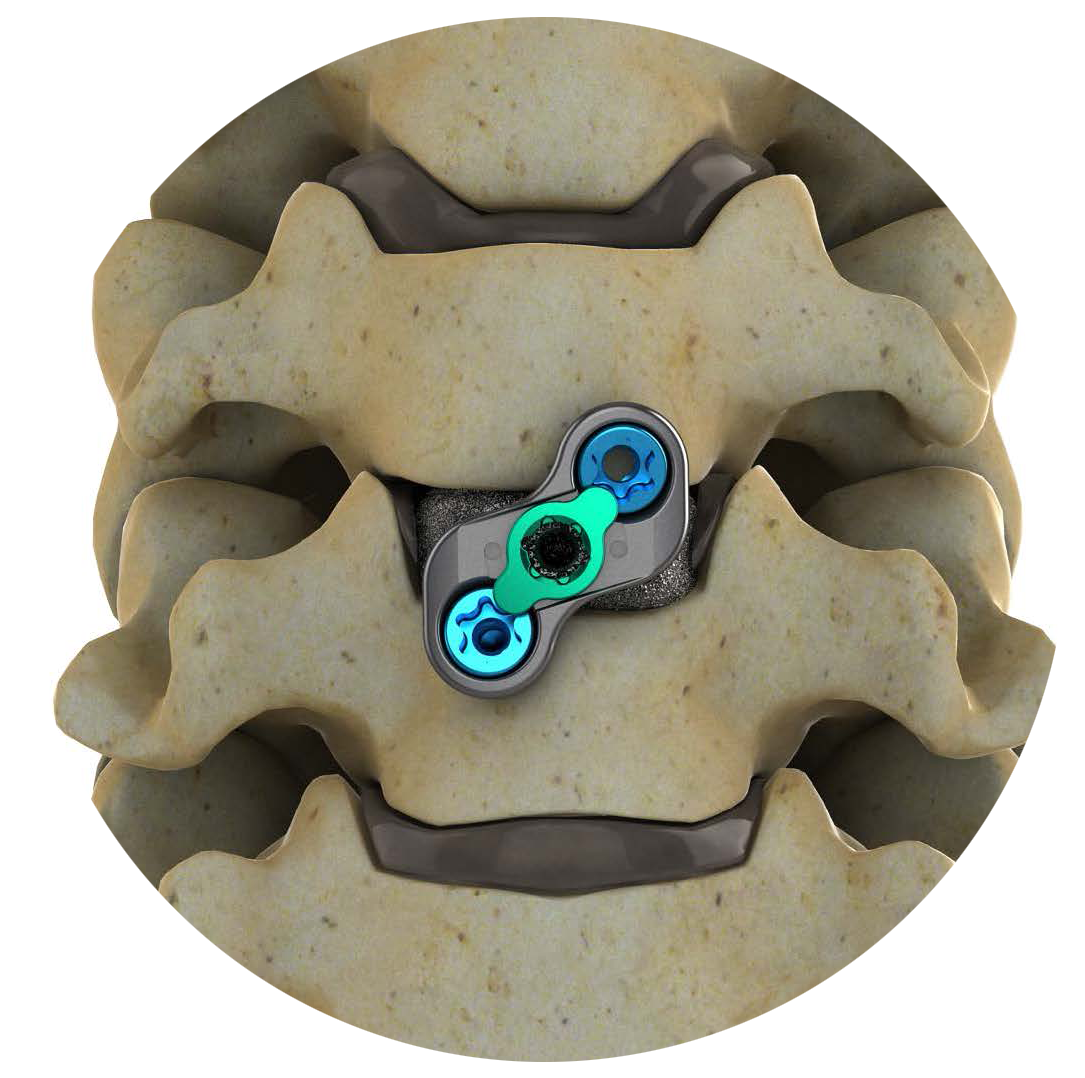

• Insert together using TigerShark™ C or Stealth® cervical interbody design to limit steps in the operating room
• 20° Maximum Cranial/Caudal Screw Angulation
• Anti-Migration Teeth
• Easy to use and minimal instrumentation

Implant Sizes:

• Plate Sizes (screw-to-screw): 10mm-13mm (1mm increments); Optional sizing: 14mm, 16mm and 18mm
• Overall Plate Size: Plate Size + 7.5mm
• Plate Width: 15mm
• Screw Diameters: Ø4.0mm and Ø4.5mm
• Screw Lengths: 10mm-16mm (2mm increments)
