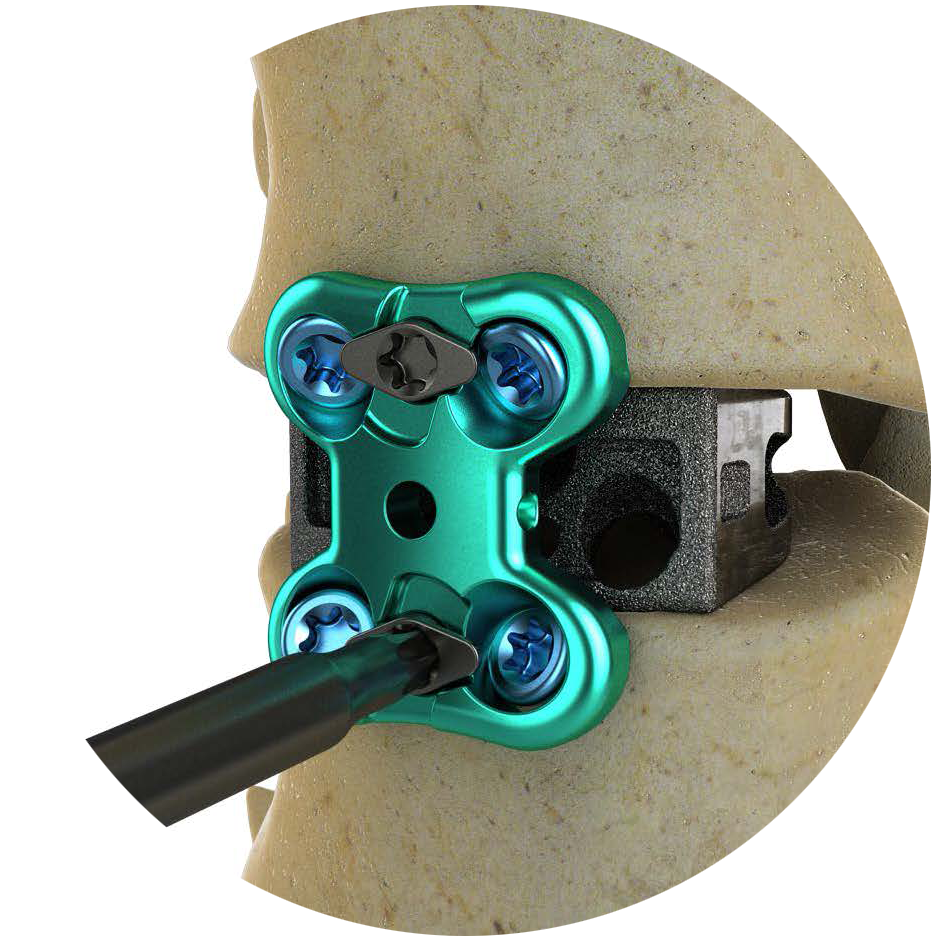

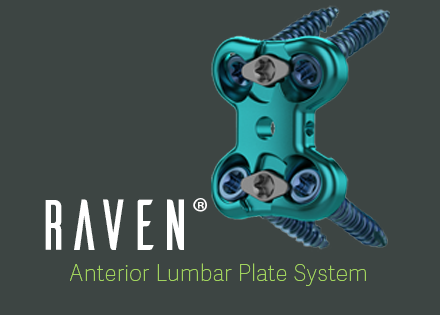

The ChoiceSpine RAVEN® Anterior Lumbar Plate System is a versatile system of implants and instruments designed to simplify and improve the efficiency of anterior lumbar spine fusion. Streamlined instrumentation facilitates a simplified surgical approach for control during insertion. The RAVEN® plate features an integrated single-step Cam Locking Mechanism for final locking. The instrumentation also allows the user to simultaneously insert the RAVEN® plate with the ChoiceSpine Harrier-SA interbody, eliminating surgical steps and can reduce operating time. |
|||||||
| Screw Offerings | Screw Diameter | Screw Lengths | Plate Sizes |
|---|---|---|---|
| Tapping Screw | 5 and 5.5mm | 20,25,30,35 | 15,17,18.5, 20,22,24mm |
RAVEN® Anterior Plate Features:
- Combined insertion with HARRIER® SA lumbar interbody
- 4-Screw Anterior Plate
- Anterior Cortical Rim Fixation
- Variable Screw Angulation
- Simple Visual and Tactile Cam Locking Mechanism for final locking
